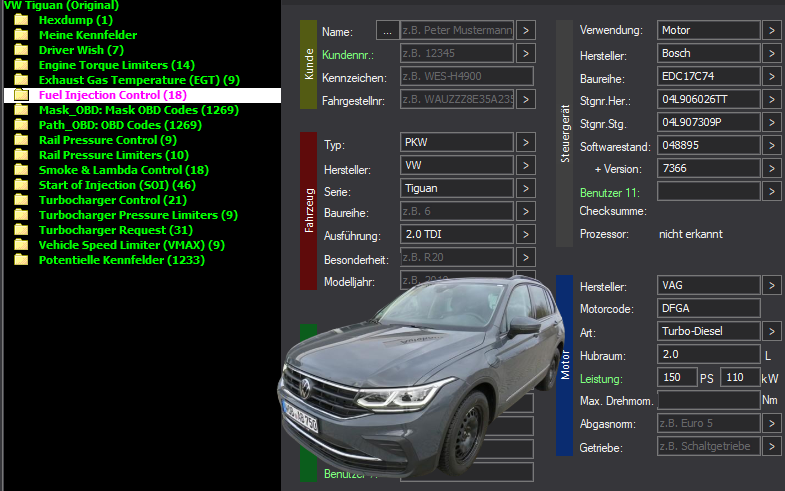

Description
This professional ECU mappack has been developed for the Bosch EDC17C74 control unit used in VAG diesel platforms. It provides structured and verified ECU maps (no potential or unverified data) for accurate and efficient calibration workflows.
DTC mask and path structures included, enabling targeted fault code removal, diagnostic adjustments and system-related modifications.
Unlike standard mappacks, this project is delivered in multiple formats, enabling seamless integration into both WinOLS and TunerPro workflows.
An additional XDF file for TunerPro is included, allowing direct map access and editing within TunerPro.
The original ECU file is embedded in the WinOLS project.
The original ECU file is also included as a .bin file for direct use.
This product does not contain a tuned file.
Product Overview
Specification Details
Product Type WinOLS & TunerPro Basic Mappack + DTC
ECU Platform Bosch EDC17C74
Vehicle Platform VAG
Engine 2.0D
Engine Code DFGA
Part Number 04L906026TT
Software 048895
Software Version 7366
Included File Formats
WinOLS Project (.ols)
WinOLS Map Pack (.kp)
TunerPro Definition File (.xdf)
Original File (.bin)
JSON Export
CSV Export
Structured ECU Areas
Torque Model
Torque request, torque limitation and engine torque structures.
Driver Wish
Driver request and pedal-based torque demand calibration.
Fuel System
Fuel injection control, fuel quantity and diesel fuel delivery strategies.
Diesel Combustion
Start of injection, smoke limitation, lambda control and combustion-related calibration maps.
Boost & Airpath
Air control, turbocharger control and boost pressure regulation.
Rail System
Rail pressure control, rail pressure request and rail pressure limiter maps.
Turbo System
Turbocharger control, turbocharger pressure limiters and turbocharger request maps.
Temperature Management
Exhaust gas temperature monitoring and thermal protection strategies.
RPM & Limiters
Engine speed, vehicle speed limiters and operational protection thresholds.
DTC System
DTC mask and path structures, including OBD diagnostic areas and fault code management.
Deactivations
Switch-based control for ECU functions and system configurations.
Key Advantages
Compatible with WinOLS and TunerPro workflows
Includes TunerPro XDF file for alternative editing environment
Original ECU file included as .bin
Multi-format export (OLS / KP / XDF / JSON / CSV)
Structured and verified ECU maps (no potential or unverified data)
Clean and professional project structure
DTC mask and path structures included
Contains 201 structured maps
Optimized for VAG 2.0D diesel calibration work
Includes SOI, rail pressure, smoke limitation, lambda control, turbocharger request, pressure limiters and DTC structures
Important Information
This product is intended for professional use only.
Knowledge of ECU calibration software such as WinOLS or TunerPro is required.
No tuning file is included in this product.
This product does not contain a tuned file.
