Description
This professional ECU mappack has been developed for the Bosch EDC16CP34 control unit used in Audi 2.7 TDI diesel platforms. It provides structured and verified ECU maps for accurate and efficient calibration workflows.
DTC mask and path structures are included, enabling targeted fault code management, diagnostic adjustments and system-related modifications.
This mappack includes valuable diesel calibration areas such as air mass control, air pressure sensor calibration, EGR control, rail pressure control, extensive rail pressure limiters, SOI, smoke/lambda control, turbocharger request, turbocharger pressure limiters, gearbox torque limiters and fuel correction structures.
Unlike standard mappacks, this project is delivered in multiple formats, enabling seamless integration into both WinOLS and TunerPro workflows.
An additional XDF file for TunerPro is included, allowing direct map access and editing within TunerPro.
The original ECU file is embedded in the WinOLS project.
The original ECU file is also included as a .bin file for direct use.
This product does not contain a tuned file.
Product Overview

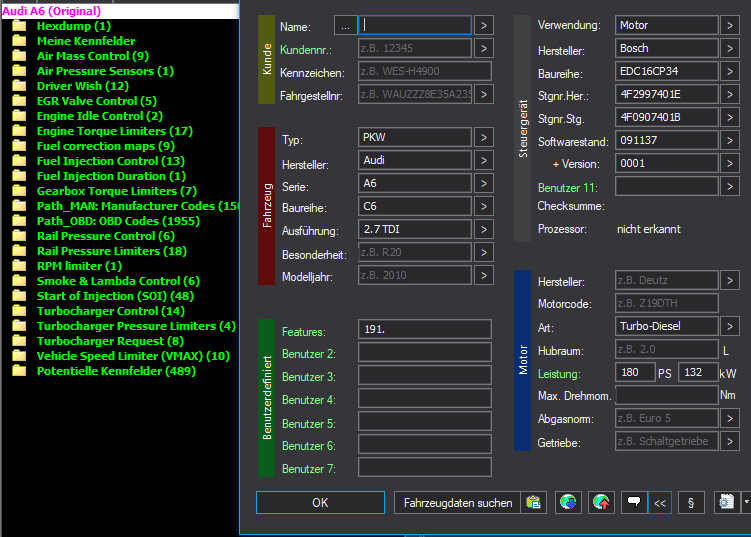

Specification | Details
Product Type | WinOLS & TunerPro Basic Mappack + DTC
ECU Platform | Bosch EDC16CP34
Vehicle Platform | Audi / VAG
Vehicle | Audi A6
Chassis | C6
Engine | 2.7 TDI
Power | 180 PS / 132 kW
Part Number | 4F2997401E
Secondary Part Number | 4F0907401B
Software | 091137
Software Version | 0001
Included File Formats
WinOLS Project (.ols)
WinOLS Map Pack (.kp)
TunerPro Definition File (.xdf)
Original File (.bin)
JSON Export
CSV Export
Structured ECU Areas
Torque Model
Engine torque limiters, driver request and torque-related calibration structures.
Driver Wish
Driver request and pedal-based torque demand calibration.
Fuel System
Fuel correction maps, fuel injection control and diesel fuel delivery strategies.
Diesel Combustion
Start of injection, smoke limitation, lambda control and combustion-related calibration maps.
Air Mass & Pressure System
Air mass control, air pressure sensor calibration and airflow-related structures.
EGR System
EGR valve control and exhaust gas recirculation strategies.
Rail System
Rail pressure control, rail pressure request and extensive rail pressure limiter structures.
Turbo System
Turbocharger control, turbocharger request and turbocharger pressure limiter calibration structures.
Temperature Management
Exhaust gas temperature monitoring and thermal protection strategies.
Gearbox Torque Limiters
Transmission-related torque limitation and drivetrain protection structures.
Idle Control
Idle control and idle-related calibration strategies.
RPM & Limiters
RPM limiter, vehicle speed limiter and operational protection thresholds.
DTC System
DTC mask and path structures, including OBD and manufacturer-code diagnostic areas and fault code management.
Key Advantages
Compatible with WinOLS and TunerPro workflows
Includes TunerPro XDF file for alternative editing environment
Original ECU file included as .bin
Multi-format export (OLS / KP / XDF / JSON / CSV)
Structured and verified ECU maps
Clean and professional project structure
DTC mask and path structures included
Contains 191 structured maps
Includes air pressure sensor and air mass calibration structures
Strong rail pressure and rail limiter coverage
Extensive SOI and smoke/lambda calibration
Includes EGR control and fuel correction maps
Includes turbocharger request and pressure limiter structures
Includes gearbox torque limiter calibration
Optimized for Audi 2.7 TDI EDC16CP34 calibration work
Important Information
This product is intended for professional use only.
Knowledge of ECU calibration software such as WinOLS or TunerPro is required.
No tuning file is included in this product.
Refund Policy
Due to the digital nature of this product, all sales are final and non-refundable once the files have been delivered.
